The New Festool Conturo, (no, it’s not an armchair)

conturo
In keeping with their  philosophy of thinking outside the box Festool has again demonstrated that they’re the most innovative tool company on the planet with the release of their new edge banding system,  the Conturo
The Conturo allows for the easy and clean application of a variety of thicknesses and widths of edge banding (lippings)  to all types of manufactured timber boards including ply, mdf & chipboard.
As well as handling straight edges the contour easily applies branding to bevels, internal and external curves.

The attached videos from Festool UK will help you explain the machine in greater detail so if you’re interested please take the time to watch them

Introduction


Applying edging.

Applying edging to curved surfaces,

Edge Banding internal Corners/

The Conturo has been released in the UK and from what Ive heard it’s doing fairly well there. Festool Australia have advised me that they don’t have a release date or pricing yet, but looking at the UK pricing I’d guess that it will retail for around the $3900 to $4450 mark.

Like all Festool Tools it’s got a fairly hefty price but looking at what the tool can do it’s sure to be a time saver, particularly on site.

As more information comes to hand I’ll post it on this site so watch this space…..

As always your comments and questions are appreciated . Thanks for reading.

Be safe and have fun.

Cheers

Bryan

Festool Hand Sanding Pad


Hand sanding pad

For those occasions when an electric sander is too aggressive or when you’re sanding delicate materials such as small mouldings, the hand sanding pad, (Festool part # 495966) is an absolute gem.

The pad features a Velcro backing which wraps around the piece and easily accepts all styles of 150mm diameter abrasives. I’ve teamed it up with the new series of Granat papers to sand small timber mouldings up to 1500 grit for a project I’m working on and have been extremely satisfied with the results to date.

Available as either a hard or soft pad and selling for under $40.00 they’re a worthwhile addition to your sanding kit.

As always, your questions and comments are appreciated

Be safe and have fun,

Cheers

Bryan

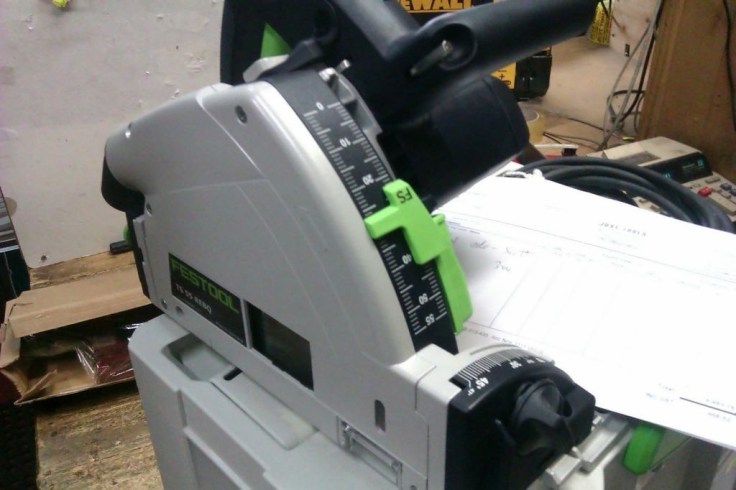

The New TS55R is here!

Hi All,

Well the new TS55R is here and I’ve finally had a chance to have a bit of a play with one. Mechanically, it’s the same as the old TS55 with no changes to either the motor size or electronic components.


The major changes are to the body of the saw with the new flat side design enabling you to cut within 12mm of a wall, or, by laying the saw on its side you easily and quickly undercut skirting boards and door frames to allow for floating floors.

You’ll also notice the change to the riving knife with the new rounded tip fitting into the saw cut more easily. The riving knife is also now in a sealed compartment of its own so you don’t have to worry about it getting clogged with swarf.

There is now a clear viewing port at the front of the blade so you can clearly see where you’re cutting. The clear port is removed and replaced with the newly designed splinter guard for splinter free offcuts.


The measuring scale has been completely revised with a dual scale and pointer showing the cutting depth both with,(FS), and without the guide rail.

The black knob to the right of the scale is another new feature. It’s use to calibrate the blade depth. When you put a re-sharpened blade blade on the saw, set the scale to zero and plunge the saw, (without the power on), then turn the turn the knob until the tip of the place touches the work surface.

One important point to remember with the new TS55R is that owing to the body changes it will no longer fit the CMS saw table. There is a new plate on the way as well as an adapter kit to retrofit existing CMS, TS55 modules.

I’ll post more info as it comes to hand.

That’s all for now, remember to be safe and have fun.

Cheers

Bryan


Protool PDP 20-4, New Video

Hi Guys,

The new Protool PDP 20-4 is on the way so please have a look at this new video on this outstanding tool which has been uploaded today by a Protool user in Russia

There’s no accompanying dialog and the production values aren’t fabulous but this will give you a really good idea of what this tool can do and the accessories that form part of the system

Please enjoy and let me know what you think.

As soon as I get a firm release date I let you all know.

As always, be safe and have fun

Cheers

Bryan

Protool UniverS SSP 200 EB, Sword saw

Hi All,

Today we’re going to have a look at a relatively new tool from Festool’s sister company Protool. The SSP 200 EB is a bit of an unusual beastie and I remember the the first time  saw it I was a bit perplexed by it.

The SSP is in essence, a chain saw that’s mounted onto a circular saw base. It has a  maximum cutting depth of 200mm (about 8 inches) and it runs along standard Festool or Protool, guide rails for accuracy and ease of cut.

Its not a tool that you have to have but if you’re regularly cutting sleepers, timber beams, or LVL, (laminated veneered lumber) boards or girders, the SSP is guaranteed to make your life easier

Designed for cutting large beams the SSP which weighs in at only 6.5 KG ( 14 Pound) is a lot easier and safer option than circular saws with a comparable cutting depth such as the Protool CSP 165 which weighs in at 22kg, (48 pounds)

The CSP 165E

I’ve used both the CSP 165 and the SSP extensively and, personally i’d now always choose the SSP over a large and heavy circular saw.

When docking beams to length with the SSP you can tilt the blade forwards at a 10 degree angle which exposes more blade to the timber and gives you a proportionately faster cut. The maximum mitre angle on the SSP is 60 degrees and when used on a guide rail will pivot on the scribe line in the same manner as a TS 55 or TS 75 will.

Lets have a look at the features of the SSP;

1, Blade,

2, Fast Fix Blade Changing

3, Guide Slot for Guide Rail

4, Mitre Angle indicator

5, Tool less chain tension adjustment

6,Tool Less chain lubrication

7,MMC, (constant speed under load) electronics

8, Bar oil level indicator

9, Dust Extractor Connection

10, Auxiliary Handle

11, Clearly visible cut indicator.

Not being a major fan of chainsaws, I must admit to being a bit nervous when using the SSP for the first time but, within 5 minutes I was as happy as a pig in …….., and had chopped up a large beam into small pieces before I realised it. When connected to a CT26 dust extractor,  with the 36mm hose about 2 thirds of the dust was collected leaving only a relatively small amount to clean up.

Click below to watch a video of the SSP in action.

As you can see from the video there is plenty of different applications for the SSP. Ive used it on both softwoods an Australian Hardwoods and found that it didn’t struggle with either of them.

No review of the SSP would be complete without giving you the chance to watch the Official Protool film on the SSP. Its the first Big Budget advert for a power tool that I can remember seeing in a long time.

Enjoy !!!!!

Well I hope you enjoyed that.

As always, your comments and questions are appreciated.

Be safe and have fun

Cheers,

Bryan

The PDP 20-4 DEC FF, New from Protool


The new PDP 20-4 DEC FF, Percussion drill driver

Just about to be released onto the Australian and New Zealand markets, the new 240 volt PDP from Festool’s sister company Protool is surely be well accepted by trade and serious DIY users alike. Inspired by the old Protool PDP 20 this new model takes advantage of technological improvements and is fitted with a brushless EC-TEC (electronically commutated – technology ) motor, the same style as those found in the Protool cordless PDC 18 and the Festool T series drills and impact drivers.
The result is a tool with amazing speed and power. A four speed gearbox, similar to that on the hugely successful PDC 18 volt cordless drill, gives the PDP 20 a top speed of 4000 rpm in top gear and a low speed of 400 rpm in its lowest gear which is perfect for all those high torque applications.

The specs for both the PDP 20 hammer drill and its brother the DRP 18 Drill Driver are shown below.


Both drills feature the fast – fix chuck system and come with the unique and highly effective centrotec chuck as standard. The drills should be available as either standard or set configuration with a heavy duty right angle drive being included in the set version.

Please see below ‘for more features on the tools.


1: Fast Fix Interface, (comes with centrotec chuck)
2: Four Speed Gearbox, (400 to 4000 rpm)
3: Brushless EC-TEC Motor
4: Inbuilt Work-light
5: Magnetic holder for tips and drills
6: Inbuilt Belt Clips
7: Constant Speed Electronics.

I had a chance to have a play with the new PDP 20-4 at the recent tradesman’s expo in Melbourne and was blown away by its performance. Coming in at around 2 kg it doesn’t seem possible for a drill this light to have this much power, when it comes to using the tool in timber and concrete it doesn’t disappoint.

I’m hoping to get my hands on a test model soon so stay tuned for a full review.

In the mean time please drop me an email or post a comment if you have any questions.

Be safe and have fun

Cheers

Bryan

Cool New Festool Products

Hi Guys,
Check out these excellent videos of new festool products including the new DF700 domino and the new T15.6 impact drill driver.
The address is vimeo.com/27335311
Cheers
